Understanding Ground Loops

1. What Exactly is a Ground Loop Anyway?

Ever heard a hum or buzz coming from your audio equipment that just won't go away? Chances are, you've encountered a ground loop. Think of it as an electrical argument happening within your system. A ground loop occurs when there's more than one path to ground in your electronic setup, creating a circuit. This circuit becomes a highway for unwanted current to flow, introducing noise into your audio or video signals.

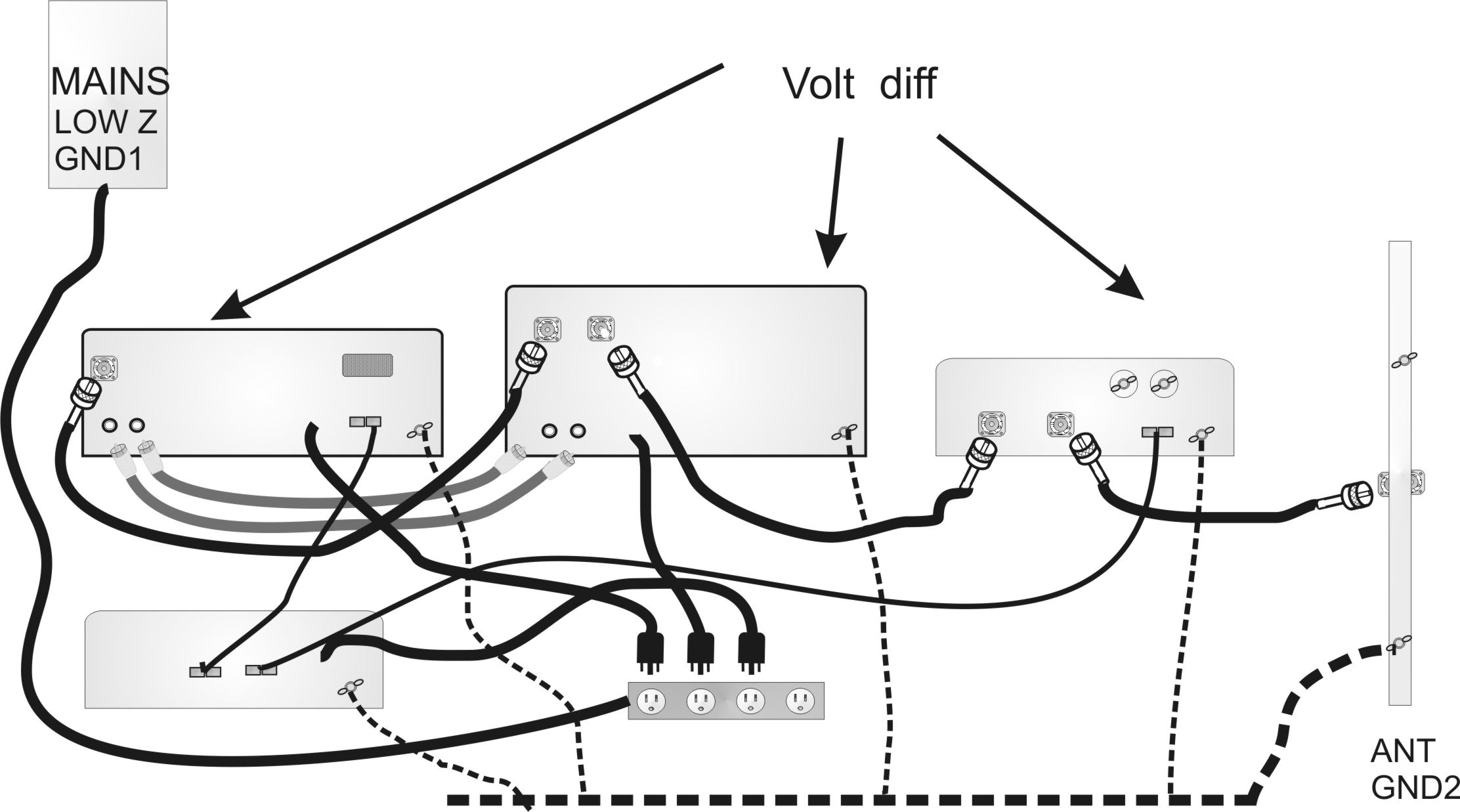

Imagine your audio interface, amplifier, and computer are all connected to different power outlets. Each outlet has its own path to the electrical ground. If these paths have slightly different electrical potentials (voltages), current will flow between them through your connecting cables — creating that annoying hum. It's like having multiple cooks in the kitchen, each adding their own spices, resulting in a dish that's well, not quite right.

This unwanted current manifests as a 50 or 60 Hz hum (depending on your country's electrical grid frequency) in audio systems or as visual noise in video setups. Its not just a minor annoyance; it can seriously degrade the quality of your recordings, performances, or movie nights. Think of it as trying to enjoy a beautiful symphony while a mosquito buzzes incessantly in your ear. Not ideal, right?

So, in a nutshell, a ground loop is an unintended electrical circuit formed when multiple grounded points in a system have different ground potentials. This difference drives current through the ground conductors, injecting noise into the signal paths. This noise is unwanted and definitely a nuisance in professional audio and video environments, and can also affect home entertainment systems.

2. Why Are Ground Loops Bad? (Keyword Focus!)

Now, let's delve into the heart of the matter: why are ground loops bad? The simple answer is they introduce noise. But that's just the tip of the iceberg. Ground loop noise, a constant humming or buzzing, can ruin audio recordings, making them unusable. Imagine recording the perfect guitar solo, only to find it's plagued by a persistent hum. Heartbreaking!

In video systems, ground loops can manifest as flickering lines, distorted images, or even complete signal loss. This is obviously unacceptable for professional video production, live broadcasts, or even just enjoying your favorite show. Nobody wants to watch a movie with a constant buzz distracting them from the plot.

Beyond the immediate annoyance of noise, ground loops can also indicate a more serious underlying issue with your electrical system. They can sometimes point to wiring problems, faulty equipment, or inadequate grounding, all of which can pose safety hazards. Ignoring ground loops might lead to equipment damage, or in extreme cases, even electrical shock! Let's just say, you don't want your sound system to give you an unwanted electric "performance".

Furthermore, ground loops can mask other subtle audio problems, making it harder to diagnose and fix issues in your signal chain. If you're constantly battling ground loop hum, you might miss other, more nuanced problems that are affecting your sound. So, addressing ground loops not only eliminates noise but also helps you ensure the overall health and performance of your audio and video systems.

Breaking the Loop

3. Ground Lift Adapters

One quick fix that sometimes gets suggested is using a ground lift adapter, also known as a "cheater plug." This adapter disconnects the ground connection on a power cord. While it might seem like a simple solution, it's generally not recommended. Disconnecting the ground removes a crucial safety feature designed to protect you from electrical shock in case of equipment failure. Think of it as removing the airbags from your car to save weight — not a smart move.

Ground lift adapters can also create other problems. By eliminating the ground connection, you might inadvertently create a floating ground, which can actually increase noise in some systems. Plus, in many jurisdictions, using a ground lift adapter is illegal because it violates electrical safety codes. Your safety is paramount, and this adapter can be detrimental.

If you're considering using a ground lift adapter, think again! There are safer and more effective ways to eliminate ground loops. Instead, explore other solutions like using isolation transformers or addressing the underlying grounding issues in your electrical system. Remember, a temporary fix that compromises safety is never worth it.

It's much better to correctly diagnose and resolve the real reason for the loop than to just put a band-aid solution. Consider the potential for electrocution when bypassing an important safety feature of any electrical equipment. Consult a qualified electrician instead.

4. Isolation Transformers

Isolation transformers provide a much safer and more effective way to break ground loops. These devices electrically isolate the input and output circuits, preventing current from flowing between the different ground points. They essentially act as a barrier, blocking the ground loop current while allowing the audio or video signal to pass through unaffected.

Using an isolation transformer is like having a bodyguard for your signal. It protects it from the harmful effects of ground loop current, ensuring a clean and noise-free signal. They are frequently found at live performances, live broadcast environments, and recording environments where proper audio and video signals are important.

There are different types of isolation transformers available, designed for various applications. For audio systems, you can use audio isolation transformers specifically designed to preserve the frequency response and dynamic range of your audio signal. For video systems, video isolation transformers can eliminate ground loop noise without degrading the image quality. Selecting the right type of transformer for your specific needs is crucial for optimal performance.

While isolation transformers might be a bit more expensive than ground lift adapters, they offer a superior solution in terms of safety, effectiveness, and signal quality. It's an investment that pays off in the long run by providing a clean and reliable signal path, allowing you to focus on your creative work without worrying about annoying noise.

Prevention is Better Than Cure

5. Star Grounding

One of the best ways to prevent ground loops in the first place is to implement a star grounding system. In a star grounding system, all ground connections are routed back to a single, central grounding point. This eliminates the possibility of multiple ground paths and ensures that all equipment shares the same ground potential.

Think of it as organizing all your grounding wires into a single, central hub. This prevents ground loop currents from circulating between different pieces of equipment. Implementing a star grounding system might require some careful planning and wiring, but it's well worth the effort in terms of reducing noise and improving overall system performance.

When setting up a star grounding system, choose a sturdy, low-impedance grounding point as your central hub. This could be a dedicated ground bus bar or a properly grounded electrical outlet. Ensure that all ground wires are securely connected to this central point. Avoid daisy-chaining ground connections, as this can create multiple ground paths and defeat the purpose of the star grounding system.

Star grounding is particularly effective in complex audio and video installations, such as recording studios, broadcast facilities, and live performance venues. By carefully planning and implementing a star grounding system, you can minimize the risk of ground loops and ensure a clean and noise-free signal path throughout your entire system.

6. Balanced Connections

Another effective strategy for minimizing ground loops is to use balanced audio connections whenever possible. Balanced connections use three wires: a positive signal wire, a negative signal wire, and a ground wire. The audio signal is transmitted as a difference between the positive and negative wires.

The beauty of balanced connections is that they can effectively reject common-mode noise, including ground loop hum. Common-mode noise is noise that is present on both the positive and negative signal wires. Because the audio signal is transmitted as a difference between the two wires, any common-mode noise is canceled out. Think of it as noise-canceling headphones for your audio signal.

To take full advantage of balanced connections, make sure that all of your equipment is properly grounded. A properly grounded system provides a low-impedance path for noise currents to flow, further reducing the risk of ground loops. Use high-quality shielded cables to minimize the amount of noise that can be induced into the signal wires.

Balanced connections are especially useful in environments where long cable runs are required, such as live sound setups or recording studios. By using balanced connections, you can transmit audio signals over long distances without introducing excessive noise or ground loop hum.
